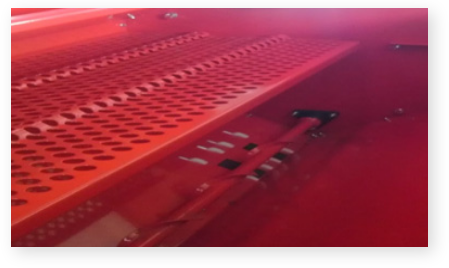

Seed Mixing Shaft:
It is a mechanism that mixes seeds into the reservoir by means of the movement coming from transmission. For the coarse grained seeds such as chickpea and bean, it is done to prevent compression in the housing outlet. It is an optional part. Get contact with our factory or the nearest authorized service if you need.
It is a mechanism that mixes seeds into the reservoir by means of the movement coming from transmission. For the coarse grained seeds such as chickpea and bean, it is done to prevent compression in the housing outlet. It is an optional part. Get contact with our factory or the nearest authorized service if you need.
Tramlining Mechanism:
It is a system developed to create road line, during the planting, for some operations will be performed afterwards such as disinfection, fertilization, etc. In direction of the intended adjustments, unplanted marks are left on the field by means of preventing turns of each two symmetric gears (4 in total) on the right and left side. When the plant becomes green, these marks will become more apparent as being empty.
It is a system developed to create road line, during the planting, for some operations will be performed afterwards such as disinfection, fertilization, etc. In direction of the intended adjustments, unplanted marks are left on the field by means of preventing turns of each two symmetric gears (4 in total) on the right and left side. When the plant becomes green, these marks will become more apparent as being empty.
- Unless otherwise specified, inwardly distance between the traces from standard factory will be 150 cm.
- The width of area with traces are left will be 37,5 cm which is two each legs equivalent. If this width is not enough, it should be asked for modifications so as to leave trace as three each craw.
- According to the work space of seed drill and fertilization and disinfection system, marking process should be performed for a good few cycle.
